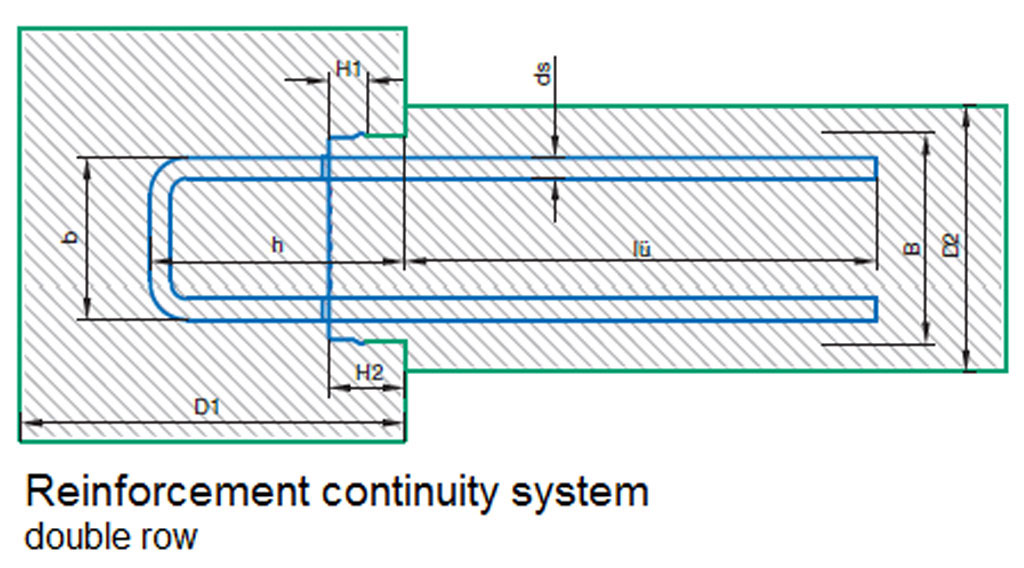

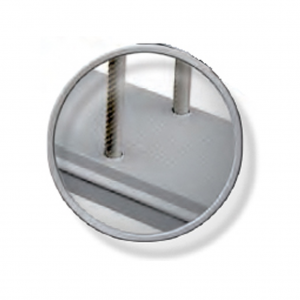

BWA B Reinforcement continuity system - Double Row

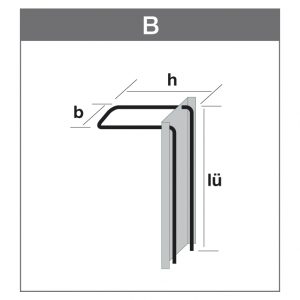

Standard type stirrup form = type ”B“ / length of element 125 cm / ”B“ = Stirrup (Bügel)

Use of constructional reinforcing steel, capable of being bent into position, according to DIN 488.
Bending roll diameter according to norm 6 ds.
Anchoring lengths and bending diameters according to the DBV-instruction sheet ”Rückbiegen“.
Tested according to DBV-instruction sheet ”Rückbiegen“.
Type approved according to Eurocode 2.
Sheet metal or plastic lids possible.
General steel quality B500 B (other steel qualities upon request).

article no.	designation	steel ”ds“ Ø mm	stirrup distance „s“ in mm	stirrup height „h“ in mm	stirrup dimensions „v“ in mm	„lü“ mm	box width ”B“ in mm	box height ”H1“ in mm	box height ”H2“ with cover mm	pallet m
BWAB 120
1200815B	BWAB 120/08-15	8	150	170	88	320	122	12	30	150
1200820B	BWAB 120/08-20	8	200	170	88	320	122	12	30	150
1200825B	BWAB 120/08-25	8	250	170	88	320	122	12	30	150

1201015B	BWAB 120/10-15	10	150	170	90	390	122	12	30	150
1201020B	BWAB 120/10-20	10	200	170	90	390	122	12	30	150
1201025B	BWAB 120/10-25	10	250	170	90	390	122	12	30	150

1201215B	BWAB 120/12-15	12	150	170	92	390	122	12	36	150
1201220B	BWAB 120/12-20	12	200	170	92	440	122	12	36	150
1201225B	BWAB 120/12-25	12	250	170	92	460	122	12	36	150
BWAB 150
1500815B	BWAB 150/08-15	8	150	170	116	320	150	12	30	150
1500820B	BWAB 150/08-20	8	200	170	116	320	150	12	30	150
1500825B	BWAB 150/08-25	8	250	170	116	320	150	12	30	150

1501010B	BWAB 150/10-10	10	100	170	118	360	150	12	30	150
1501015B	BWAB 150/10-15	10	150	170	118	390	150	12	30	150
1501020B	BWAB 150/10-20	10	200	170	118	390	150	12	30	150
1501025B	BWAB 150/10-25	10	250	170	118	390	150	12	30	150

1501210B	BWAB 150/12-10	12	100	170	120	310	150	12	36	125
1501215B	BWAB 150/12-15	12	150	170	120	460	150	12	36	125
1501220B	BWAB 150/12-20	12	200	170	120	460	150	12	36	125
1501225B	BWAB 150/12-25	12	250	170	120	460	150	12	36	125
BWAB 170
1700815B	BWAB 170/08-15	8	150	170	134	320	168	12	30	125
1700820B	BWAB 170/08-20	8	200	170	134	320	168	12	30	125
1700825B	BWAB 170/08-25	8	250	170	134	320	168	12	30	125

1701010B	BWAB 170/10-10	10	100	170	136	390	168	12	30	125
1701015B	BWAB 170/10-15	10	150	170	136	390	168	12	30	125
1701020B	BWAB 170/10-20	10	200	170	136	390	168	12	30	125
1701025B	BWAB 170/10-25	10	250	170	136	390	168	12	30	125

1701210B	BWAB 170/12-10	12	100	170	138	370	168	12	36	125
1701215B	BWAB 170/12-15	12	150	170	138	460	168	12	36	125
1701220B	BWAB 170/12-20	12	200	170	138	460	168	12	36	125
1701225B	BWAB 170/12-25	12	250	170	138	460	168	12	36	125
BWAB 190
1900815B	BWAB 190/08-15	8	150	170	152	320	186	12	30	125
1900820B	BWAB 190/08-20	8	200	170	152	320	186	12	30	125
1900825B	BWAB 190/08-25	8	250	170	152	320	186	12	30	125

1901010B	BWAB 190/10-10	10	100	170	154	390	186	12	30	125
1901015B	BWAB 190/10-15	10	150	170	154	390	186	12	30	125
1901020B	BWAB 190/10-20	10	200	170	154	390	186	12	30	125
1901025B	BWAB 190/10-25	10	250	170	154	390	186	12	30	125

1901210B	BWAB 190/12-10	12	100	170	156	430	186	12	36	125
1901215B	BWAB 190/12-15	12	150	170	156	460	186	12	36	125
1901220B	BWAB 190/12-20	12	200	170	156	460	186	12	36	125
1901225B	BWAB 190/12-25	12	250	170	156	460	186	12	36	125
BWAB 220
2200815B	BWAB 220/08-15	8	150	170	188	320	222	12	30	80
2200820B	BWAB 220/08-20	8	200	170	188	320	222	12	30	80
2200825B	BWAB 220-08-25	8	250	170	188	320	222	12	30	80

2201010B	BWAB 220/10-10	10	100	170	190	390	222	12	30	80
2201015B	BWAB 220/10-15	10	150	170	190	390	222	12	30	80
2201020B	BWAB 220/10-20	10	200	170	190	390	222	12	30	80
2201025B	BWAB 220/10-25	10	250	170	190	390	222	12	30	80

2201210B	BWAB 220/12-10	12	100	170	192	460	222	12	36	80
2201215B	BWAB 220/12-15	12	150	170	192	460	222	12	36	80
2201220B	BWAB 220/12-20	12	200	170	192	460	222	12	36	80
2201225B	BWAB 220/12-25	12	250	170	192	460	222	12	36	80
BWAB 240
2400815B	BWAB 240/08-15	8	150	170	208	320	242	12	30	80
2400820B	BWAB 240/08-20	8	200	170	208	320	242	12	30	80
2400825B	BWAB 240/08-25	8	250	170	208	320	242	12	30	80

2401010B	BWAB 240/10-10	10	100	170	210	390	242	12	30	80
2401015B	BWAB 240/10-15	10	150	170	210	390	242	12	30	80
2401020B	BWAB 240/10-20	10	200	170	210	390	242	12	30	80
2401025B	BWAB 240/10-25	10	250	170	210	390	242	12	30	80

2401210B	BWAB 240/12-10	12	100	170	212	460	242	12	36	80
2401215B	BWAB 240/12-15	12	150	170	212	460	242	12	36	80
2401220B	BWAB 240/12-20	12	200	170	212	460	242	12	36	80
2401225B	BWAB 240/12-25	12	250	170	212	460	242	12	36	80
