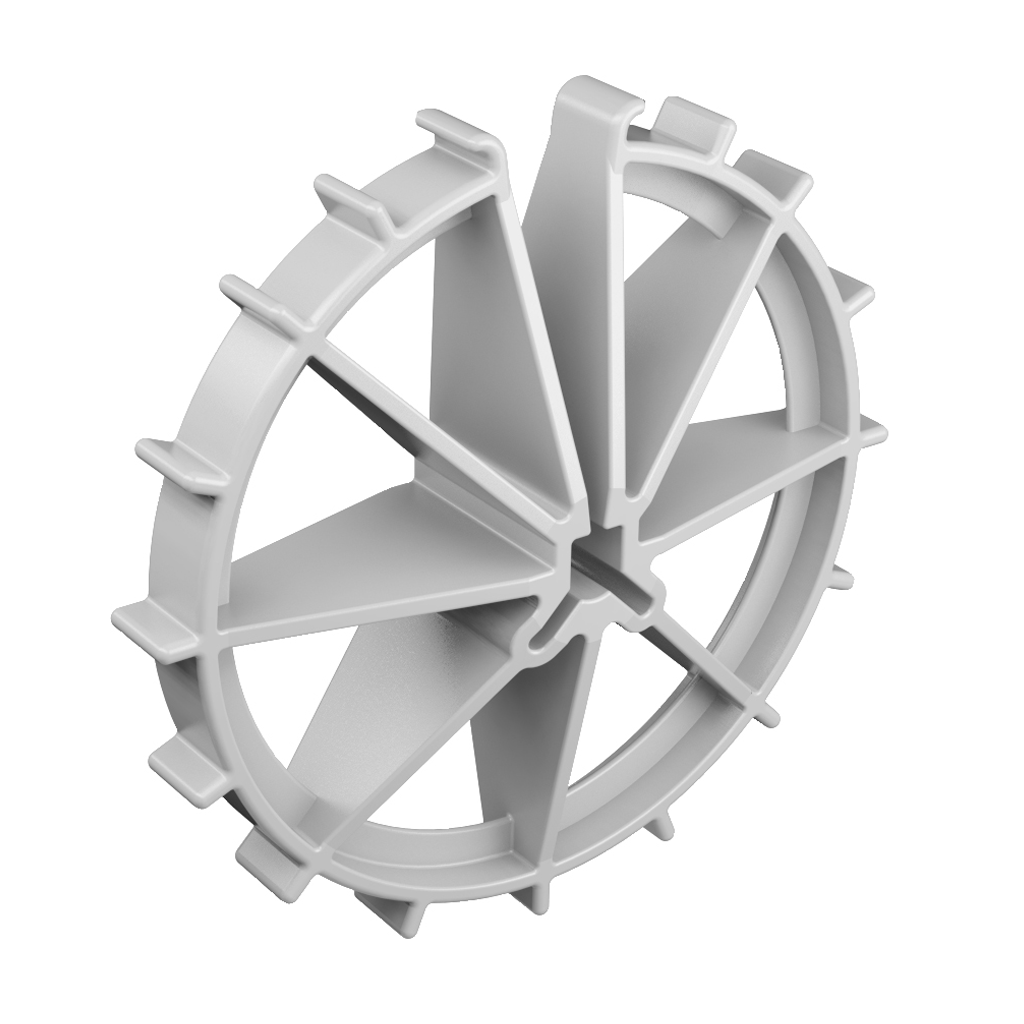

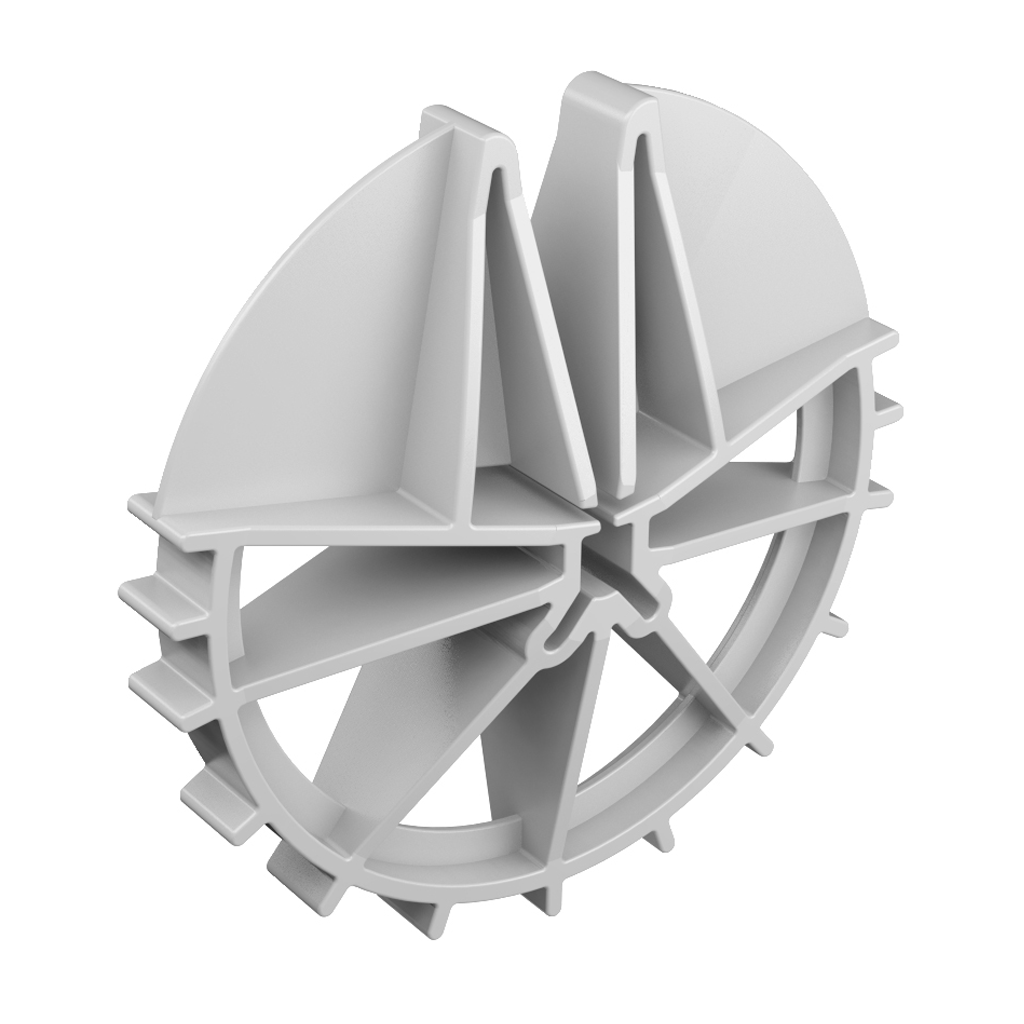

KAS
Clamp wheel spacer
- Spacer with a defined clamping range for different steel diameters.
- Extra stable spacer with firm hold on the steel bar.
| article no. | designation | concrete cover (mm) | for steel Ø (mm) | units / bag | units / sac | units / pallet |
|---|---|---|---|---|---|---|
| 4210 | KAS 6/10 | 10 | 4 – 6 | 1.000 | 10.000 | 140.000 |
| 4215 | KAS 6/15 | 15 | 4 – 6 | 500 | 7.500 | 105.000 |
| 4220 | KAS 6/20 | 20 | 4 – 6 | 500 | 5.000 | 70.000 |
| 4225 | KAS 6/25 | 25 | 4 – 6 | 500 | 3.000 | 42.000 |
| 4410 | KAS 8/10 | 10 | 6 – 8 | 1.000 | 10.000 | 140.000 |
| 4415 | KAS 8/15 | 15 | 6 – 8 | 500 | 5.000 | 70.000 |
| 4420 | KAS 8/20 | 20 | 6 – 8 | 500 | 4.000 | 56.000 |
| 4425 | KAS 8/25 | 25 | 6 – 8 | 500 | 3.000 | 42.000 |
| 4430 | KAS 8/30 | 30 | 6 – 8 | 250 | 1.500 | 21.000 |
| 4435 | KAS 8/35 | 35 | 6 – 8 | 200 | 1.000 | 14.000 |
| 4440 | KAS 8/40 | 40 | 6 – 8 | 200 | 800 | 11.200 |
| 4615 | KAS 12/15 | 15 | 10 – 12 | 500 | 4.000 | 56.000 |
| 4620 | KAS 12/20 | 20 | 10 – 12 | 500 | 3.500 | 49.000 |
| 4625 | KAS 12/25 | 25 | 10 – 12 | 500 | 2.500 | 35.000 |
| 4635 | KAS 12/35 | 35 | 10 – 12 | 200 | 1.000 | 14.000 |
| 4640 | KAS 12/40 | 40 | 10 – 12 | 100 | 800 | 11.200 |
| 4904512 | KAS 12/45 | 45 | 10 – 12 | 500 | 8.000 | |
| 4650 | KAS 12/50 | 50 | 10 – 12 | 100 | 300 | 4.200 |
| 4915 | KAS 18/15 | 15 | 14 – 18 | 500 | 3.000 | 42.000 |
| 4920 | KAS 18/20 | 20 | 14 – 18 | 500 | 2.500 | 35.000 |
| 4925 | KAS 18/25 | 25 | 14 – 18 | 500 | 2.000 | 28.000 |
| 4930 | KAS 18/30 | 30 | 14 – 18 | 200 | 1.000 | 14.000 |
| 4940 | KAS 18/40 | 40 | 14 – 18 | 100 | 600 | 8.400 |
| 4950 | KAS 18/50 | 50 | 14 – 18 | 100 | 300 | 4.200 |
