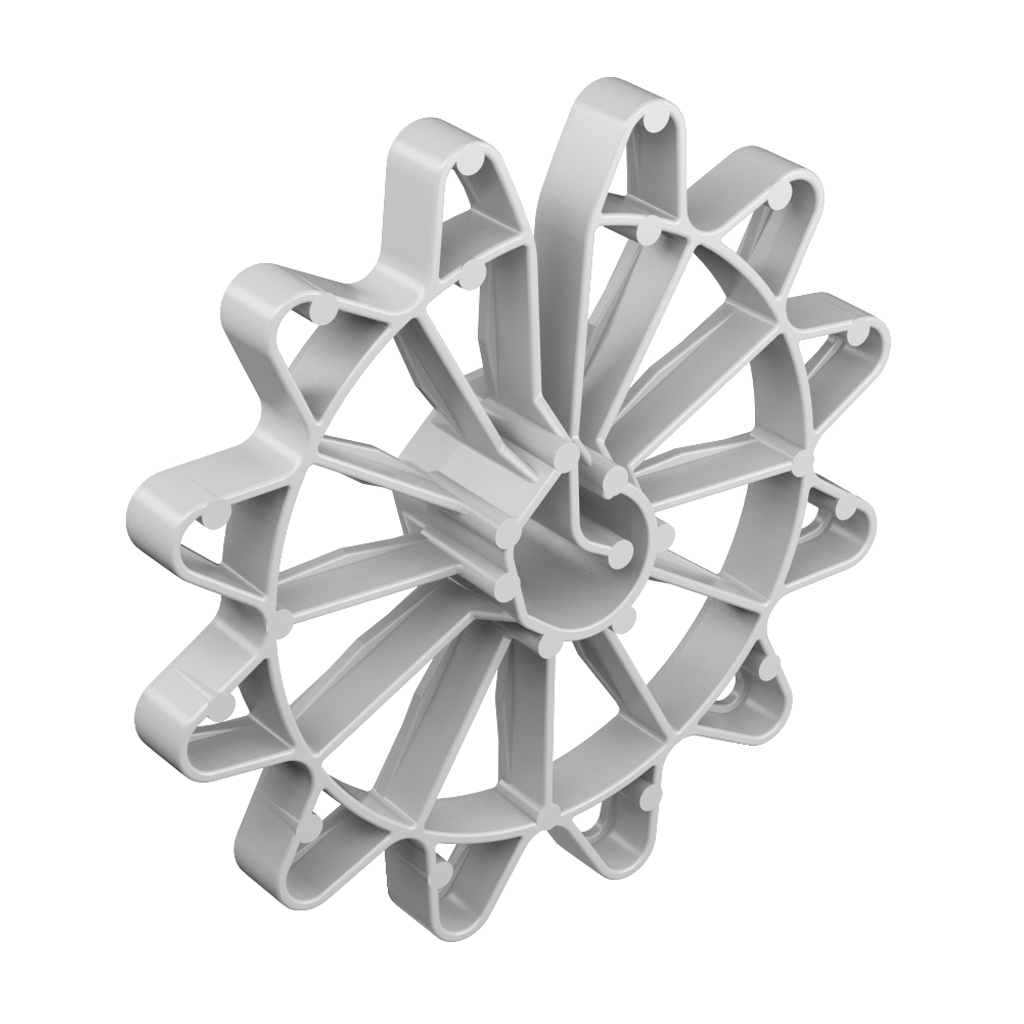

UNI

Details

article no.	designation	concrete cover (mm)	for steel Ø (mm)	units / bag	units / sac	units / pallet
4015	UNI 4-10 / 15	15	4 – 10	1.000	5.000	100.000
4020	UNI 4-12 / 20	20	4 – 12	500	4.000	72.000
4025	UNI 4-12 / 25	25	4 – 12	500	2.500	45.000
4025S*	UNI 4-12 / 25 S	25	4 – 12	500	2.500	45.000
4030	UNI 4-12 / 30	30	4 – 12	250	1.500	30.000
4030S*	UNI 4-12 / 30 S	30	4 – 12	250	1.500	30.000
4035	UNI 4-12 / 35	35	4 – 12	200	1.000	18.000
4035S*	UNI 4-12 / 35 S	35	4 – 12	200	1.000	18.000
4040	UNI 5-14 / 40	40	5 – 14	125	750	13.500
4040S*	UNI 5-14 / 40 S	40	5 – 14	125	750	13.500
4050	UNI 8-14 / 50	50	8 – 14	100	500	9.000
4050S*	UNI 8-14 / 50 S	50	8 – 14	100	500	9.000
*reinforced for heavy loading
4120	UNI 6-20 / 20	20	6 – 20	250	2.000	40.000
4125	UNI 6-20 / 25	25	6 – 20	250	1.000	36.000
4130	UNI 6-20 / 30	30	6 – 20	125	1.000	20.000
4135	UNI 6-20 / 35	35	6 – 20	125	1.000	16.000
4140	UNI 6-20 / 40	40	6 – 20	125	500	14.000
4150	UNI 6-20 / 50	50	6 – 20	50	500	8.000
4160	UNI 12-20 / 60	60	12 – 20		250	6.500
4175	UNI 12-20 / 75	75	12 – 20		250	4.500
